Liquid Dye Penetrants

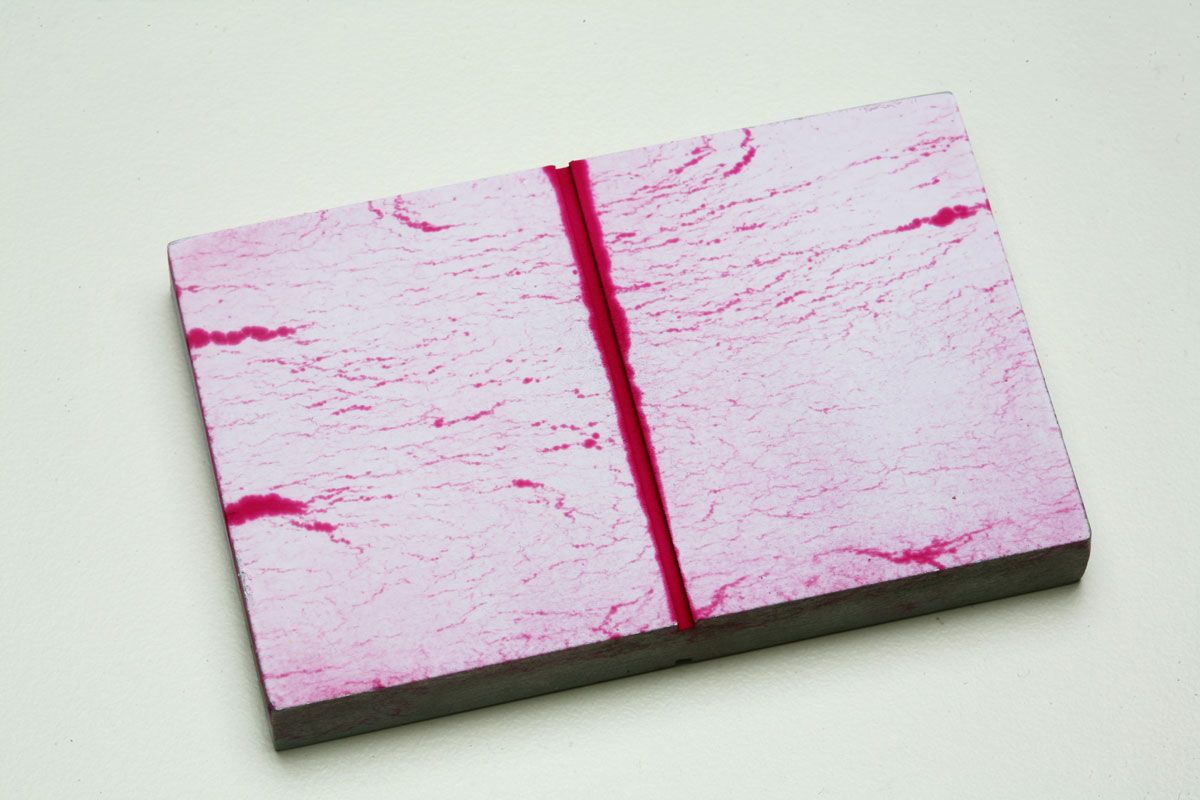

Red Dye Penetrants

Conforms to ASTM E-165, ASTM E-1220, IS 3658, IS 12889, AMS-2644, EN ISO 3452, ASME B&PV CODE SEC V Art 6

ORION 119P High Sensitivity

Product Description
High Sensitivity Type II, Method C, SL 20 micron on Ni Cr Test Panel
(NPC Approved)
Applications
Used for high precision inspection of critical Aerospace and Nuclear components
400 ml aerosol cans

ORION 115P Medium Sensitivity

Product Description
Medium Sensitivity Type II Method C, SL 30 micron on Ni Cr Test Panel
Applications
Used for general purpose such as castings, forgings, welding and rough semi-finished surface inspection
280 ml / 400 ml aerosol cans

ORION 106P Low Sensitivity

Product Description
Low Sensitivity Type II Method C, SL 50 micron on Ni Cr Test Panel
Applications
Used for cost effective inspection of castings, forgings and welding
280 ml / 400 ml aerosol cans

ORION 19P High Sensitivity

Product Description
High Sensitivity Type II Method C – Visible Penetrant
Applications
High sensitivity for precision jobs used in aerospace and power plants
1 / 5 / 20 Litres

ORION 18P Medium Sensitivity

Product Description
Medium Sensitivity Type II Method C – Visible Penetrant
Applications
General purpose inspection for castings, forgings, welding and rough surface inspection
1 / 5 / 20 Litres



PRE-EMULSIFIED FLUORESCENT PENETRANTS (WATER WASHABLE)


ORION 23FP3

Product Description
Ultra-High Sensitivity Type I Method A
SL-4
Crack detectability 05 micron on Ni-Cr Panel
Applications
Ultra High Sensitivity & is recommended for extremely critical applications wherever maximum sensitivity is required.
1 / 5 / 20 Litres

ORION 23FP2

Product Description
High Sensitivity Type I
Method A
SL-3
Crack detectability 10 micron on Ni-Cr Panel
Applications
High sensitivity recommended for use on highly stressed rotating parts of gas turbine engines and similar applications
1 / 5 / 20 Litres

ORION 23 FP (HS)

Product Description
Medium Sensitivity Type I, Method A
SL-2
Crack detectability 10 micron on Ni-Cr Panel
Applications
General purpose medium sensitivity for precision castings, forgings, aircraft and aerospace components
280 ml aerosol can
5 / 20 Litres

ORION 23FP

Product Description
Low Sensitivity Type I, Method A, SL-1/2 to 1
Crack detectability 20 micron on Ni-Cr Panel
Applications
General purpose for forgings, castings and similar components. Low water tolerance
5 / 20 Litres


POST-EMULSIFIED FLUORESCENT PENETRANTS


ORION 24PE3

Product Description
High Sensitivity Type I Method B,C,D SL-4 Crack detectability 05 micron on Ni-Cr Panel
Applications
Ultra High Sensitivity & is recommended for extremely critical applications wherever maximum sensitivity is required.
5/20 Litres

ORION 24PE2

Product Description
High Sensitivity Type I, Method B,C,D SL-3 Crack detectability 10 micron on Ni-Cr Panel
Applications
High Sensitivity recommended for use on highly stressed rotating parts of gas turbine engines and similar applications
5/20 Litres

ORION 24PE

Product Description
Medium Sensitivity Type I, Method B,C,D SL-2 Crack detectability 10 micron on Ni-Cr Panel
Applications
General purpose for forgings, castings and similar components.
5/20 Litres

Emulsifiers and Penetrant Removers

ORION 119PR

Product Description
Class 2, Ready to use solvent type (NPC Approved)
Applications
Highly volatile flammable solvent penetrant remover/cleaner for ORION 119P
400 ml aerosol cans

ORION 115PR

Product Description
Class 2 – Ready to use solvent type
Applications
Highly volatile flammable solvent penetrant remover/cleaner for ORION 115P
280 ml / 400 ml aerosol cans

ORION 106PR

Product Description
Class 2 – Ready to use solvent type
Applications
General purpose flammable solvent penetrant remover/cleaner for ORION 106P
280 ml / 400 ml aerosol cans

ORION 20PR

Product Description
Class 3 – Ready to use type for specific aerospace inspection
Applications
Low volatile solvent penetrant remover/cleaner used in immersion bath systems for ORION 18P and ORION 19P
1 / 5 / 20 Litres

ORION 26PR

Product Description
Hydrophilic concentrate type emulsifier for Method D application
Applications
20–30% solution in water used for all types of post-emulsified fluorescent penetrants
5 / 20 Litres

ORION 201PR

Product Description
Lipophilic ready to use emulsifier for Method B application
Applications
Fast acting emulsifier for post-emulsified fluorescent penetrants. Used in dip tank systems
5 / 20 Litres

ORION 204PR

Product Description
Class 2 – Ready to use solvent type
Applications
General purpose penetrant remover/cleaner for ORION 18P and ORION 19P
5 / 20 Litres


Developers

ORION 119D

Product Description
Form ‘d’ – Ready to use Non aqueous (NPC Approved)
Applications
Ultra-fine high sensitivity volatile solvent developer used for critical inspection. Used with ORION 119P
400 ml aerosol can

ORION 115D

Product Description
Form ‘d’ – Ready to use Non aqueous
Applications
Quick drying volatile solvent developer for semi-finished and rough surface. Used with ORION 115P
280 ml / 400 ml aerosol can

ORION 106D

Product Description
Form ‘d’ – Ready to use Non aqueous in aerosol can
Applications
General purpose flammable volatile solvent developer for rough surface. Used with ORION 106P
280 ml / 400 ml aerosol can

ORION 22D

Product Description
Form ‘d’ – Ready to use non aqueous type
Applications
General purpose flammable medium volatile developer used in critical bath systems with ORION 18P and ORION 19P
1 / 5 / 20 Kg

ORION 28D

Product Description
Form ‘a’ – Ready to use fluffy powder
Applications
Extremely light dry developer powder used for low sensitivity fluorescent dye penetrants
1 / 5 Kg

ORION 28D2

Product Description
Form ‘a’ – Ready to use dry powder
Applications Dry developer powder used with ultra-high fluorescent dye penetrant
1 / 5 Kg
