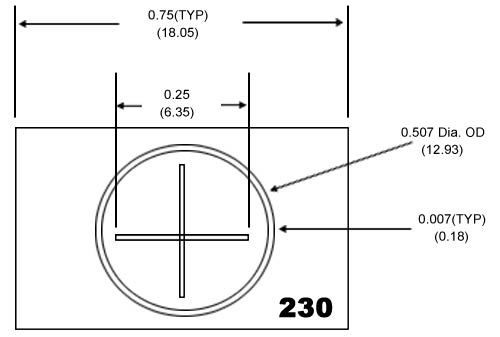

QQI Shim

NOTCHES : DEPTH-30% 0.0006 (0.015)

NOTES :
SHIM THICKNESS - 0.002 (0.05)
ALL DIMENSIONS X.XX ARE ± 0.01
ALL DIMENSIONS X.XXX ARE ± 0.001
ALL DIMENSIONS X.XXXX ARE ± 0.0001
DIMENSIONS IN BRACKETS (mm)
DIMENSIONS ARE IN INCHES
